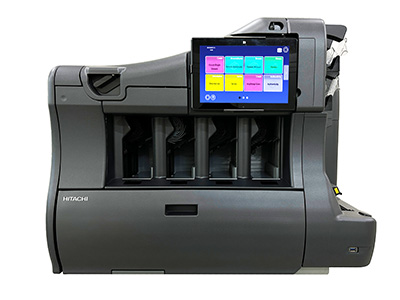

- MS-4200 is a desk top sorter with High throughput & High accuracy.
Features
MS-4200 is a fast reliable, precise, and multi-functional sorter that provides a broad selection of options. It is an ideal choice for back office in banks and cash-in-transit(CIT), as well as casinos and retails.
High throughput & High accuracy
- It is optimized for higher throughput, enhanced efficiency, and easy operation
- Easy guidance for any operators
- Showing Jam point in the screen
- Automatic assisted feeding mechanism
- Descending type stacker pocket
- Extension 4 pockets (Optional)
- Automated banding function (Optional)
Specifications
| Currency | No limit currency |
| MIX : Up to 30 currency | |
| Operation Speed | Max 1,200 banknotes / min |
| MAX : 72,000 banknotes / hour | |
| Pocket Capacity | Hopper : 1,200 notes |
| Stacker : 500 notes with 4 stacker | |
| Reject : 250 notes with 2 reject | |
| (1 reject pocket is changeable as stacker) | |
| Sensor information | Full line UV sensor applied, Infrared, Magnetic, Thickness Sensor (Mechanic) |
| Banknote size | 60-85mm(V) x 100~177mm(H) |
| Dimension | 860(W) x 425(D) x 680(H) mm |
| Weight | 86Kgs, 120Kgs (Gross) |
Specification of optional module
| Extension 4 pocket (EX4) | Capacity : 250 notes with 4 stacker |
| Dimension : 415(W) x 425(D) x 560(H) mm | |
| Weight : 45Kgs, 72Kgs (Gross) | |
| MS-4200+EX4 : 8 stacker + 2 reject |
