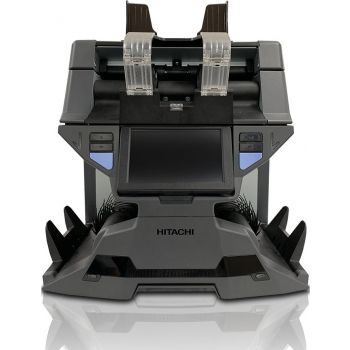

Hitachi IH-210
IH-210
iH-210 is advanced banknote processing machine with maximized efficiency technology with 3 pockets banknote sorter.
Features
Compact Size with Full Function 3 Pockets
- Similar size to 2 pockets machine
- Saving workspace and minimize the cash processing movement
- Selective pocket for fitness options: ATM, FIT, Reject
Advanced Technologies
- Full color Dual CIS Sensor, Equipped with a range of counterfeit detection technologies
- Capture and Record of OCR, MICR and Barcode
- Can be installed more than 32 currencies
- Multi-currency mode (Up to 16 currencies can be counted at once)
- Reliable Fitness sorting/ Excellent tape detection performance
User-Friendly System
- 2-Teller mode/ Multi-user mode
- 5“ Full LCD Color Touch Screen (Angle adjustable)
Remote monitoring & management system
- Related Application: Smart Integration Manager(SIM) and WEB-SIM
Specifications
| Currency | Up to 32 currencies including Mix & CNT (Mix & Multi up to 16 currencies) | ||
| Operating Speed | Counting | Max. 1,300 Notes/min | |
| Value/ Fitness Counting | Max. 1,200 Notes/min | ||
| Serial NumberM Recognition & Printing | Max. 1,000 Notes/min | ||
| Pocket Capacity | Hopper | Max. 1,000 Notes | |
| Stacker x 2 | Max. 300 Notes (Mint condition) | ||
| Reject Pocket x 1 | Max. 150 Notes (Mint condition) | ||
| Display | 480 x 272 TFT LCD (5 inch), Touch Screen | ||
| Dimensions | 382 (W) x 417 (D) x 340 (H) mm | ||
| Weight | Approx. 21 Kg | ||
| User Interface | LAN, USB(Serial) x 2, USB(host), RS232C x 3 | ||
| Power Supply | 100 – 240V ~ 50/60Hz | ||
| Sensor Information | Full Color Dual CIS Reflection (R, G, B, IR, UV) x 2, Transmisson(IR) | ||
| Magnetic Sensor(Full Line) | |||
| Thickness Detection Sensor(12 Channel) | |||
| UV Reflection, Transmission (8 Channel) | |||
| Options | External LCD Display, Thermal Printer | ||
